OIDC Reference

Complete reference for BlokSec’s OpenID Connect implementation. For a step-by-step integration guide, see the OIDC Quickstart.

BlokSec’s provider is built on node-oidc-provider and implements the standard OpenID Connect and OAuth 2.0 endpoints. The fastest way to integrate is to point a standard OIDC client library at the discovery document and let it configure itself.

Base URLs

Each environment is a separate issuer. Use the base URL that matches the environment your application targets.

Environment	Base URL	Issuer (iss)
Production	https://api.bloksec.io	https://api.bloksec.io/oidc
Sandbox / development	https://api.bloksec.dev	https://api.bloksec.dev/oidc

All OIDC endpoints live under the /oidc path. The rest of this page uses the production base URL; substitute the sandbox URL for testing.

Caution

The issuer (iss) includes the /oidc suffix: https://api.bloksec.io/oidc. When you configure an OIDC client library’s authority, use the full issuer URL including /oidc, not just the host. The iss claim in every token will exactly match this value.

Discovery

GET /oidc/.well-known/openid-configuration

Returns the full OIDC discovery document with all endpoint URLs, supported scopes, grant types, claims, and signing algorithms. Most OIDC client libraries use this endpoint for automatic configuration — you give them the issuer URL and they fetch everything else.

Application types

When you create an application in the BlokSec admin console, you choose a type: Web application, Single-Page App (SPA), or Native app. The type determines whether BlokSec treats your client as confidential or public, what credentials it issues, and which token endpoint authentication methods are available.

Web application

A server-side app running in a trusted environment (Node.js, .NET, Python, etc.) where the client secret never leaves the server. BlokSec issues a client secret and treats it as a confidential client.

Use this type when:

• Your callback handler runs on a server you control
• You need refresh tokens for long-lived sessions
• You want the strongest token endpoint authentication options (JWT assertions, mTLS)

Single-Page App (SPA)

A browser-only JavaScript app where no server-side component can hold a secret. BlokSec creates a public client — no client secret is issued. PKCE (S256) is required in place of client authentication.

Use this type when:

• Your callback runs entirely in the browser (React, Vue, Angular, etc.)
• You cannot keep a secret out of the browser bundle or DevTools
• Redirect URIs use https

Native app

A mobile or desktop application. Like a SPA, it is a public client — no secret is issued and PKCE is required. Redirect URIs can be custom URI scheme (e.g. com.example.app://callback) or loopback (http://127.0.0.1).

Use this type when:

• Your app runs on iOS, Android, macOS, Windows, or Linux
• You need to use a custom scheme or loopback redirect URI

Comparison

	Web application	SPA	Native app
Client type	Confidential	Public	Public
Client secret	Yes	No	No
PKCE required	No (recommended)	Yes (S256)	Yes (S256)
Refresh tokens	Yes (offline_access + prompt=consent)	Yes (offline_access + prompt=consent)	Yes (offline_access + prompt=consent)
Typical redirect URI	https://yourapp.com/callback	https://yourapp.com/callback	Custom scheme or loopback
token_endpoint_auth_method	client_secret_basic (default), client_secret_post, client_secret_jwt, private_key_jwt, tls_client_certificate	none	none

Note

The public/confidential distinction matters when reading the OIDC discovery document. Public clients (none auth method) are expected to send a code_verifier at the token endpoint; confidential clients authenticate with their secret or a JWT assertion. BlokSec enforces this at token exchange — mixing them up is the most common integration mistake.

Authorization endpoint

GET /oidc/auth

Starts the authentication flow. Redirect the user’s browser to this endpoint.

Parameters

Parameter	Required	Description
client_id	Yes	Application’s Client ID (a DID, assigned when you create the application)
redirect_uri	Yes	Must exactly match a redirect URI registered on the application
response_type	Yes	code for the authorization code flow
scope	Yes	Space-separated scopes (must include openid)
state	Recommended	Opaque value echoed back to your callback for CSRF protection
nonce	Recommended	Random value bound into the ID token; verify it after token exchange
prompt	Conditional	login forces re-authentication; consent forces the consent screen. Required to obtain a refresh token — see Refresh tokens
code_challenge	Public clients	S256 PKCE challenge (required when token_endpoint_auth_method is none)
code_challenge_method	Public clients	Must be S256

Response

On success, redirects to redirect_uri with:

• code — authorization code, valid for 10 minutes and usable once
• state — echo of your state parameter

On failure, redirects with error and error_description query parameters.

Token endpoint

POST /oidc/token
Content-Type: application/x-www-form-urlencoded

Exchanges an authorization code, refresh token, or client credentials for tokens. Confidential clients authenticate here; the default method is client_secret_basic (HTTP Basic auth with the Client ID and secret), and client_secret_post is also accepted.

Authorization code exchange

Parameter	Required	Description
grant_type	Yes	authorization_code
code	Yes	The authorization code from the callback
redirect_uri	Yes	Must match the redirect_uri from the authorization request
client_id	Yes	Application’s Client ID
client_secret	Confidential clients	Application’s client secret
code_verifier	Public clients	The PKCE verifier whose challenge was sent to the authorization endpoint

Refresh token exchange

Parameter	Required	Description
grant_type	Yes	refresh_token
refresh_token	Yes	A previously issued refresh token
client_id	Yes	Application’s Client ID
client_secret	Confidential clients	Application’s client secret
scope	No	A subset of the originally granted scopes

Client credentials

For machine-to-machine authentication where the application acts as itself, with no user involved.

Parameter	Required	Description
grant_type	Yes	client_credentials
client_id	Yes	Application’s Client ID
client_secret	Yes	Application’s client secret
scope	No	Requested scopes

Response

{
  "access_token": "0pHqW8c5Rf...opaque",
  "id_token": "eyJhbGci...",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "8xY...",
  "scope": "openid email profile offline_access"
}

• access_token — an opaque token (see Token formats). Present it as a Bearer token to BlokSec endpoints; do not attempt to decode it.
• id_token — a signed JWT containing the user’s identity claims.
• expires_in — always present, so client libraries can schedule renewal. client_credentials responses do not include id_token or refresh_token.

UserInfo endpoint

GET /oidc/me
Authorization: Bearer {access_token}

Returns claims about the authenticated user, filtered by the scopes the access token was granted. This is the standard way for a client to fetch the user’s profile after login.

Note

The UserInfo path is /oidc/me, the node-oidc-provider default. Client libraries that read the discovery document pick this up automatically.

Response

{
  "sub": "did:bloksec:abc123",
  "email": "user@example.com",
  "email_verified": true,
  "given_name": "Jane",
  "family_name": "Smith",
  "name": "Jane Smith",
  "preferred_username": "jane",
  "upn": "jane",
  "user_did": "did:bloksec:abc123"
}

JWKS endpoint

GET /oidc/jwks

Returns the JSON Web Key Set used to sign ID tokens. Use these keys to verify ID token signatures. Access tokens are opaque and have no signature to verify — validate them with introspection or UserInfo instead.

End session endpoint

GET /oidc/session/end

RP-initiated logout. Redirect the user’s browser here to end their BlokSec session. After logout, BlokSec redirects back to post_logout_redirect_uri if one is supplied and registered.

Parameter	Required	Description
id_token_hint	Recommended	The ID token issued to the client, identifying the session to end
client_id	Recommended	Application’s Client ID
post_logout_redirect_uri	No	Must match a registered post-logout redirect URI
state	No	Echoed back on the redirect

Note

Front-channel and back-channel logout are not implemented. Logout ends the session for the current application only.

Introspection and revocation

Endpoint	Method	Description
/oidc/token/introspection	POST	Token introspection (RFC 7662) — returns token metadata and an active flag
/oidc/token/revocation	POST	Token revocation (RFC 7009)

Introspection

Because access tokens are opaque, a resource server validates them by calling the introspection endpoint:

POST /oidc/token/introspection
Content-Type: application/x-www-form-urlencoded

token={access_token}

A confidential client authenticates with HTTP Basic auth. A public client may introspect only tokens that were issued to itself. The response includes:

{
  "active": true,
  "client_id": "did:bloksec:abc123",
  "sub": "did:bloksec:user456",
  "scope": "openid email profile",
  "exp": 1619704640,
  "iat": 1619701040
}

If the token is invalid, expired, or revoked, active is false and no other fields are returned.

Caution

A successful revocation returns an empty 200 response with no body, per RFC 7009 (errors are returned as JSON). Some client libraries — for example oidc-client-ts with revokeTokensOnSignout: true — mishandle the empty response during signout. Disable automatic revocation on signout and rely on the end session endpoint instead. See the Quickstart for the recommended signout flow.

Scopes and claims

Available scopes

Scope	Claims included
openid	sub, aud, amr (required for every request)
email	email, email_verified
profile	name, given_name, family_name, middle_name, nickname, preferred_username, picture, profile, website, gender, birthdate, zoneinfo, locale, updated_at, upn, user_did, user_short_code, account
phone	phone_number, phone_number_verified
offline_access	No claims — grants a refresh token (see below)

Standard JWT claims (iss, aud, exp, iat, auth_time, sid, nonce, amr) appear in the ID token regardless of scope.

In the admin console, the application’s Scopes setting (on the application form) controls which of these scopes the app is permitted to request. A request for a scope the application isn’t allowed to use is ignored.

BlokSec-specific claims

Claim	Description
account	JSON-encoded object with account-specific data, including the user’s roles for this application
upn	User Principal Name (typically the account name)
user_did	The user’s Decentralized Identifier
user_short_code	Short code identifying the user-client relationship

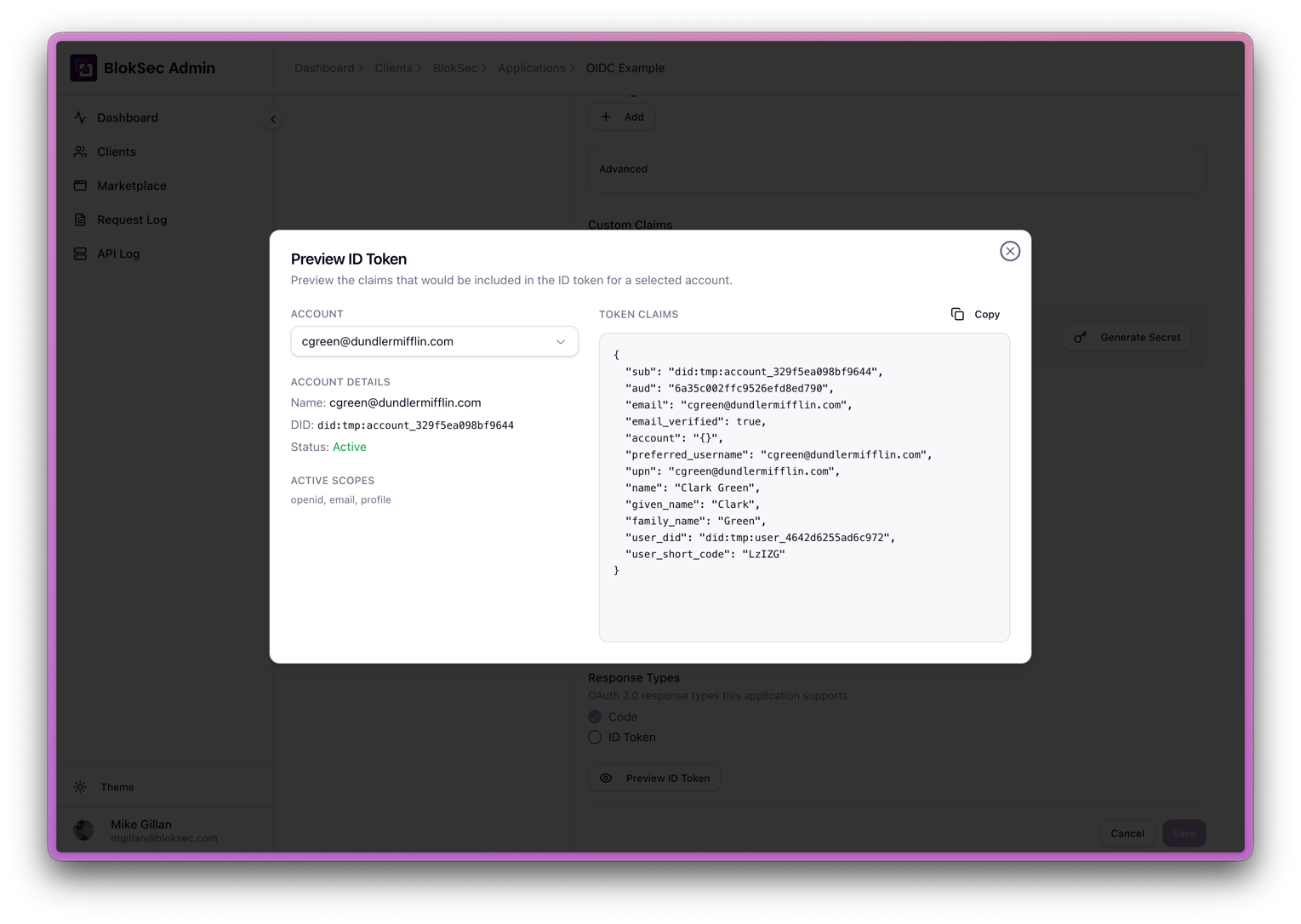

Preview ID token

The admin console can show you the exact claims your application will receive for a real account — without running a full login flow. This is the fastest way to confirm your scope configuration produces the claims your app expects.

On the application’s detail page (available once the app has been created), click Preview ID Token, then select an account. BlokSec renders the ID token claims that account would receive given the application’s configured scopes, and lists the active scopes used. A Copy button copies the JSON.

Screenshot pending

/screenshots/developer/oidc-reference/preview-id-token.png

Preview ID Token dialog showing an account selector and the resulting ID token claims

Previewing the ID token claims for a selected account

Example claims for an app with the openid email profile scopes granted:

{
  "sub": "did:bloksec:account_abc123",
  "aud": "your-client-id",
  "email": "jane@example.com",
  "email_verified": true,
  "account": "{}",
  "preferred_username": "jane@example.com",
  "upn": "jane@example.com",
  "name": "Jane Smith",
  "given_name": "Jane",
  "family_name": "Smith",
  "user_did": "did:bloksec:user_def456",
  "user_short_code": "Lz1ZG"
}

Note

Preview requires at least one account in the application — the preview renders a real account’s claims, not synthetic data. The claims shown reflect both the account’s profile and the scopes the application is configured to request, so it doubles as a quick check of your scope setup.

Token formats

Token	Format	How to validate
ID token	Signed JWT (PS256 or RS256)	Verify the signature against the JWKS endpoint, then check iss, aud, exp, and nonce
Access token	Opaque string	Call introspection or UserInfo; do not decode
Refresh token	Opaque string	Exchange at the token endpoint

Token lifetimes

Token	Lifetime
Access token	1 hour
ID token	1 hour
Authorization code	10 minutes
Client credentials token	10 minutes
Refresh token	7 days
Session	1 hour
Grant (consent)	14 days

Supported grant types

Grant type	Description
authorization_code	Standard browser-based login (default)
refresh_token	Exchange a refresh token for a new access token
client_credentials	Server-to-server authentication, no user

An application must have a grant type enabled on its configuration to use it. By default, applications are created with authorization_code, refresh_token, and client_credentials.

Refresh tokens and offline_access

To receive a refresh token, two conditions must hold:

1. The application has the refresh_token grant type enabled (the default).
2. The authorization request includes scope=...offline_access and prompt=consent.

The prompt=consent parameter is the most commonly missed setting. The OpenID Connect spec requires it when requesting offline_access, and without it the provider drops offline_access from the request and returns no refresh token.

Token endpoint authentication methods

Method	Used by
client_secret_basic	Confidential clients (default) — Client ID and secret via HTTP Basic auth
client_secret_post	Confidential clients — credentials in the form body
client_secret_jwt, private_key_jwt	Confidential clients using signed JWT client assertions
none	Public clients (SPAs, native apps) — PKCE is required instead

Advanced: token endpoint authentication methods

These methods apply to Web application (confidential) clients only. SPA and Native clients always use none (PKCE handles their security instead).

client_secret_basic (default) The client ID and secret are base64-encoded and sent in the Authorization: Basic ... header. This is the standard HTTP Basic authentication scheme and the default for all new Web application clients.

Authorization: Basic base64(client_id:client_secret)

client_secret_post The client ID and secret are included as form body parameters (client_id and client_secret) rather than a header. Useful when the HTTP client or proxy cannot set custom Authorization headers.

client_secret_jwt The client creates a JWT signed with an HMAC algorithm using the client secret as the key, and sends it as a client_assertion parameter (with client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer). This proves possession of the secret without transmitting it directly.

private_key_jwt The strongest option. The client signs the assertion JWT with its own private key; BlokSec verifies it with the corresponding public key registered on the application. No shared secret exists between client and server — the private key never leaves the client.

tls_client_certificate The client authenticates via a mutual-TLS certificate presented during the TLS handshake. The certificate must be registered on the application. Best suited for high-security server environments with certificate infrastructure already in place.

Tip

Prefer private_key_jwt for new confidential integrations — it eliminates the shared secret and is the hardest to abuse if your infrastructure is ever compromised. client_secret_basic is fine for most standard integrations.

PKCE

PKCE (Proof Key for Code Exchange) is required for public clients — those whose token_endpoint_auth_method is none. Only the S256 challenge method is supported. Confidential clients may use PKCE but are not required to.

ID token signing algorithms

ID tokens are signed with PS256 or RS256. Fetch the public keys from the JWKS endpoint to verify signatures.

Error responses

Token endpoint errors follow RFC 6749:

{
  "error": "invalid_grant",
  "error_description": "Authorization code has expired"
}

Common errors:

Error	Meaning
invalid_client	Client authentication failed (bad ID or secret)
invalid_grant	Authorization code or refresh token is invalid, expired, or already used
invalid_request	A required parameter is missing or malformed
invalid_scope	A requested scope is unknown or not allowed for this client
unauthorized_client	The client is not authorized for the requested grant type

UserInfo and other Bearer-protected endpoints return:

Error	Meaning
invalid_token	The access token is missing, expired, or revoked
insufficient_scope	The access token lacks a scope required for the request
